This document covers setup instructions for the following QUI integrations and MCP connectors:

• Google OAuth login
• GitHub Personal Access Token
• Slack MCP connector
• Notion MCP connector
• Discord MCP connector
• Google Calendar MCP connector
• Brave Search MCP connector

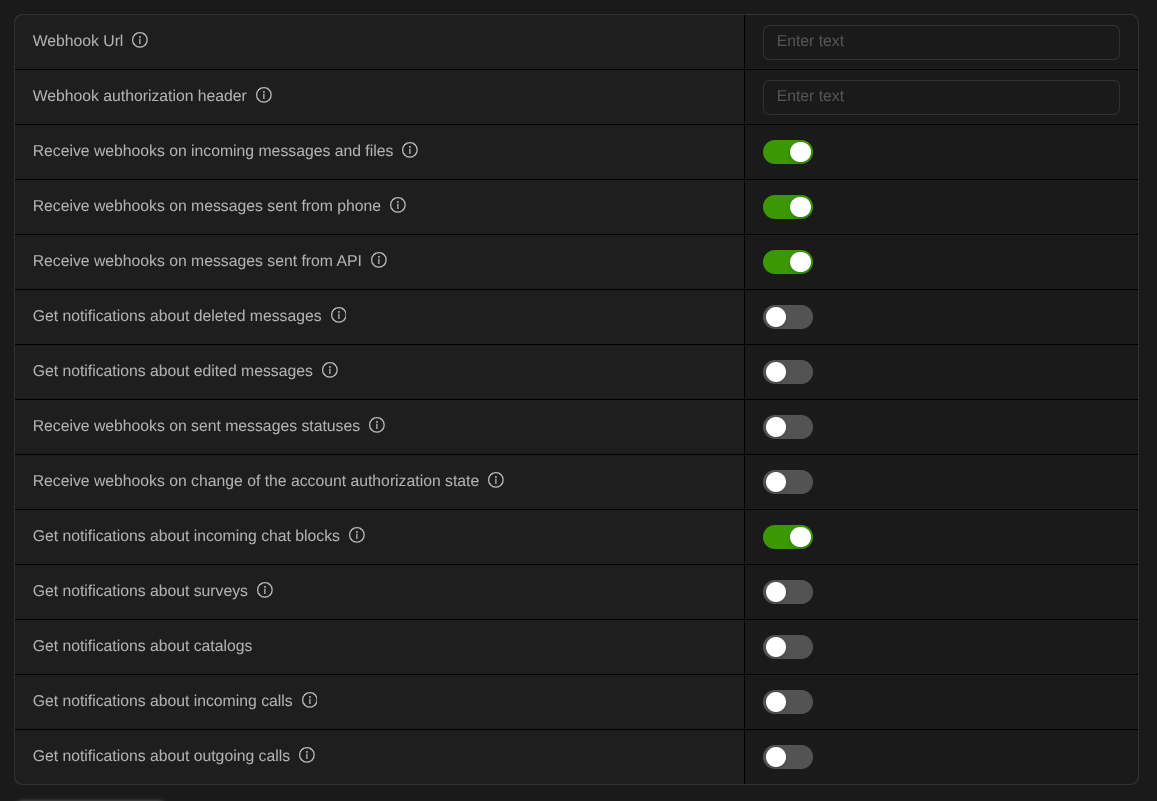

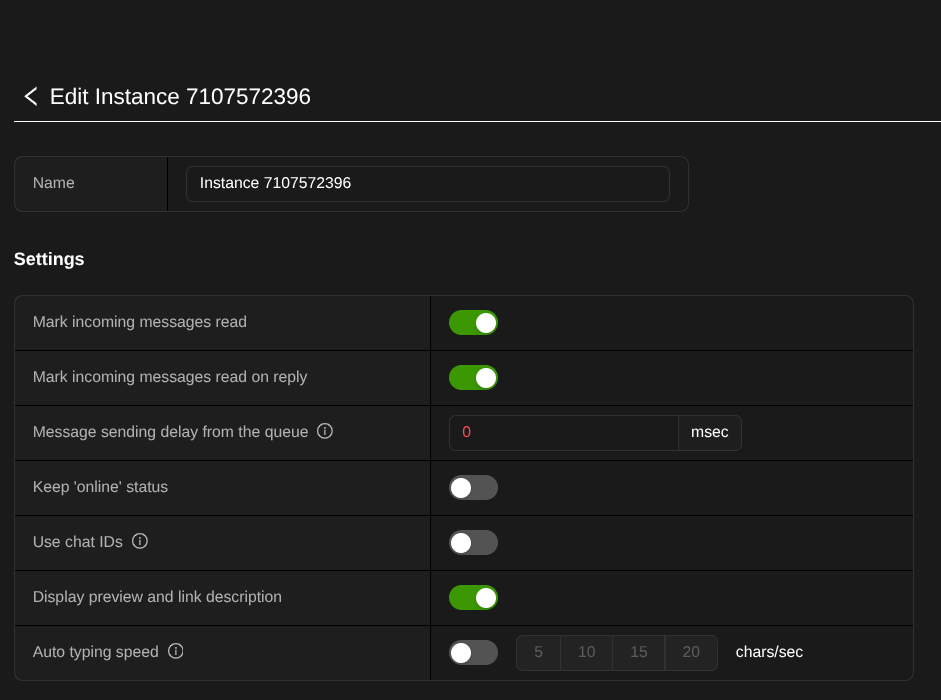

• WhatsApp / GreenAPI node
• Telegram

General Security Notes

• Treat all API keys, OAuth client secrets, bot tokens, and service account JSON files as secrets.
• Never commit tokens or JSON key files to Git.
• Store production secrets in the appropriate environment variable store or deployment secret manager.
• Prefer short-lived or expiring credentials where possible.
• Rotate any token immediately if it may have been exposed.

1. Google OAuth Login Setup

This enables Google OAuth login for QUI.

1.1 Create OAuth Credentials in Google Cloud Console

1. Open the Google Cloud Console:https://console.cloud.google.com
2. Create a new project or select the existing production project.
3. Go to:APIs & Services → Credentials → Create Credentials → OAuth client ID
4. Set the application type:Web application
5. Set the name:QUI.IS Production
6. Click Create.
7. Copy the generated:
   • client_id
   • client_secret

Add the authorized redirect URI:

https://qui.is:11000/api/v1/auth/google/callback

Verify that this matches the actual production Nginx routing and the existing configuration referenced in 2FA.md around line 1303.

1.2 Configure the OAuth Consent Screen

This is a one-time setup if it has not already been completed.

1. In Google Cloud Console, go to:APIs & Services → OAuth consent screen
2. Set the user type:
   • Use External unless QUI is managed inside a Google Workspace organization.
3. Fill in the required fields:
   • App name
   • User support email
   • Developer contact email
   • App domain: qui.is
   • Authorized domains: qui.is
4. During development, add test users.
5. For production, publish the consent screen when ready.

Add the following scopes:

userinfo.email
userinfo.profile

1.3 Configure Google OAuth in the Mothership Admin Panel

1. Navigate to:Settings → Authentication
2. Save the settings.

Verify that:

googleRedirectUri

matches the redirect URI configured in Google Cloud Console.

Paste the Google OAuth client secret:

googleClientSecret = <client_secret from Google Cloud>

The backend will Fernet-encrypt the secret before storing it.

Paste the Google OAuth client ID:

googleClientId = <client_id from Google Cloud>

Set:

googleOAuthEnabled = true

Log in to the admin dashboard:

https://qui.is/admin

Or use the current deployed admin dashboard URL if different.

1.4 Restart / Cache Refresh

After saving the settings, either:

• Restart Mothership, or
• Wait for the 5-minute Redis cache TTL on auth_setting to expire.

1.5 Verification

Run:

curl https://qui.is/api/v1/auth/google/login -i

Expected result:

HTTP 302 redirect to https://accounts.google.com/o/oauth2/v2/auth?...

Then test in a browser:

1. Complete the Google login flow.
2. Confirm that the callback succeeds and the user is logged in.

Visit:

https://qui.is/api/v1/auth/google/login

2. GitHub Personal Access Token Setup

Use a GitHub Personal Access Token for GitHub MCP access.

2.1 Recommended Option: Classic Token

Classic tokens are recommended for best compatibility.

1. Open GitHub.
2. Go to:Settings → Developer settings → Personal access tokens → Tokens (classic)
3. Click:Generate new token (classic)

2.2 Recommended Scopes

Select the following scopes:

• repo — full control of private repositories, issues, pull requests, branches, and commits
• workflow — required if the MCP needs to read or trigger GitHub Actions
• read:org — allows access to organization repositories and members
• read:user — user profile lookups
• user:email — user email lookups
• gist — optional; only required for gist tools
• notifications — optional; only required for notification tools

2.3 Expiration Recommendation

Recommended expiration:

90 days

Avoid No expiration unless absolutely necessary. If a non-expiring token leaks, it remains valid until manually revoked.

3. Slack MCP Connector Setup

Slack is suitable for building and testing QUI MCP apps. A free Slack workspace is enough for the core Slack MCP connector tools.

The connector uses Slack Web API functionality such as:

• Listing channels
• Posting messages
• Reading conversation history
• Listing users
• Uploading files
• Adding reactions

3.1 What Works on Slack Free Workspaces

Free Slack workspaces support:

• Creating apps
• Creating bots
• Slash commands
• Bot tokens such as xoxb-...
• User tokens such as xoxp-...
• Events API
• Socket Mode
• OAuth
• Webhooks
• Most Web API methods used by the QUI MCP connector

3.2 Slack Features That Usually Require a Paid Plan

The following features generally require a paid Slack plan and are not required for normal QUI MCP testing:

• admin.* API methods
• Workspace or user administration APIs
• Enterprise Grid
• SCIM
• Discovery API / eDiscovery
• DLP
• Message retention policies
• Advanced Workflow Builder features

3.3 Free-Tier Gotchas

• Free workspaces cap accessible message history at 90 days. Older messages may still exist, but they cannot be read via API.
• Free workspaces are limited to 10 installed integrations at once.
• Uninstall old test apps as needed.
• Bots may count against seat limits in some edge cases, although normal test bots are usually fine.

3.4 Recommended Slack Testing Setup

1. Do not test against a real team workspace unless required.
2. Install the app into the throwaway workspace.

Copy the bot token into the MCP Gateway environment as:

SLACK_TOKEN=xoxb-...

Create the app at:

https://api.slack.com/apps

Create a throwaway workspace, for example:

qui-mcp-test.slack.com

3.5 Slack App Setup — Step by Step

Step 1: Create a Test Workspace

Skip this step if you already have a suitable test workspace.

1. Sign up with your email.
2. You should now be the workspace owner, which is required to install apps.

Name the workspace something like:

qui-mcp-test

Go to:

https://slack.com/get-started

Step 2: Create the Slack App

1. Click:Create New App → From scratch
2. Select the test workspace.
3. Click Create App.

Set the app name:

QUI MCP Connector

Go to:

https://api.slack.com/apps

Step 3: Configure Bot Token Scopes

Go to:

OAuth & Permissions → Scopes → Bot Token Scopes → Add an OAuth Scope

Add the following scopes:

Step 4: Install the App to the Workspace

1. On the same OAuth & Permissions page, scroll to the top.
2. Click:Install to Workspace
3. Review permissions.
4. Click Allow.
5. After installation, Slack returns to the OAuth & Permissions page.

This is the value for:

SLACK_TOKEN=xoxb-...

Copy the Bot User OAuth Token.It starts with:

xoxb-...

Step 5: Invite the Bot into Channels

The bot cannot read or post in a channel until it has been invited.

In Slack, open the channel and run:

/invite @QUI MCP Connector

Use the actual bot name if different.

Step 6: Optional Events API / Socket Mode

This is only needed if Slack should push events to QUI, such as mentions or incoming messages.

For outbound API calls, the bot token alone is sufficient.

To enable Socket Mode:

1. Go to Socket Mode.
2. Toggle Enable Socket Mode.

Save it as:

SLACK_APP_TOKEN=xapp-...

Generate an app-level token with the scope:

connections:write

To enable event subscriptions:

1. Go to Event Subscriptions.
2. Toggle events on.

Subscribe to bot events such as:

message.channels
app_mention

Step 7: Wire Slack into the MCP Gateway

Edit:

Qui_Core_Services/MCP_Gateway/.env

Add:

SLACK_TOKEN=xoxb-...
SLACK_APP_TOKEN=xapp-... # only if Socket Mode was enabled

Then rebuild the MCP Gateway container according to 111.md.

Step 8: Test Slack

From the gateway, call one of the Slack MCP tools, for example:

slack_list_channels

Or test posting to a channel where the bot has been invited:

slack_post_message

If the response is:

not_in_channel

invite the bot to the channel again.

3.6 Slack Common Gotcha

If you add a new scope after installing the app, you must click:

Reinstall to Workspace

Existing tokens do not automatically receive newly added scopes.

4. Notion MCP Connector Setup

Use a Notion internal integration for the QUI Notion MCP connector.

4.1 Create the Notion Integration

1. Click New integration.
2. Select the associated workspace.
3. Add a logo if desired.
4. Click Save.

Set the name:

QUI MCP Connector

Set type:

Internal

Public is only needed if distributing the integration to other workspaces.

Go to:

https://www.notion.so/profile/integrations

Or use:Settings → Connections → Develop or manage integrations

4.2 Set Notion Integration Capabilities

On the integration's Configuration tab, go to the Capabilities section.

Enable:

• Read content
• Update content
• Insert content
• Read user information → choose Without email unless emails are specifically required
• Read comments — optional
• Insert comments — optional

Click Save changes.

4.3 Copy the Notion Token

1. Go to the Secrets tab or Internal Integration Secret section.
2. Click Show.
3. Copy the token.

The token may look like either of these:

ntn_...
secret_...

Both formats should work.

4.4 Share Pages and Databases with the Integration

This is the most commonly missed step.

Notion integrations start with zero access. You must explicitly grant the integration access to every page or database it should touch.

For each page or database:

1. Open the page in Notion.
2. Click the ... menu in the top-right.
3. Go to:Connections → Connect to

Select:

QUI MCP Connector

Alternative path:

Share → + Add connections → select QUI MCP Connector

Tip: connect the integration to a top-level parent page, such as:

QUI Sandbox

Then put test pages and databases inside it. Child pages inherit access from the connected parent page.

4.5 Wire Notion into the MCP Gateway

Edit:

Qui_Core_Services/MCP_Gateway/.env

Add:

NOTION_API_KEY=ntn_xxx...

Then rebuild the MCP Gateway container according to 111.md.

4.6 Test Notion

Call:

notion_search

with an empty query.

Expected result:

• It should return every page and database the integration has access to.

If it returns:

[]

then the integration probably has not been connected to any pages or databases. Repeat the sharing step above.

4.7 Notion Common Gotchas

5. Discord MCP Connector Setup

Use a Discord bot for the QUI Discord MCP connector.

5.1 Create a Test Discord Server

Skip this if you already have a suitable server.

In Discord desktop or web:

1. Click the + icon in the bottom-left.
2. Choose:Create My Own → For me and my friends
3. You are now the server owner, which is required for bot invites.

Name it:

QUI MCP Test

5.2 Create the Discord Application

1. Click New Application.
2. Accept the Discord Developer Terms of Service.
3. Click Create.

Name it:

QUI MCP Connector

Go to:

https://discord.com/developers/applications

5.3 Create and Configure the Bot User

1. In the left sidebar, go to Bot.
2. Confirm that the bot user exists.
3. Rename the bot or set an avatar if desired.
4. Under Privileged Gateway Intents, enable:
   • Server Members Intent — required for discord_list_members
   • Message Content Intent — required for discord_read_messages to return message text
   • Presence Intent — optional; only needed for online/offline status
5. Click Save Changes.

5.4 Copy the Discord Bot Token

1. On the Bot page, click:Reset Token → Yes, do it!
2. Copy the token immediately.

Discord only shows the token once.

This token becomes:

DISCORD_BOT_TOKEN=your-bot-token-here

Security warning: never commit this token to Git. Discord may automatically invalidate bot tokens that are pushed to public repositories.

5.5 Generate the Bot Invite URL

Go to:

OAuth2 → URL Generator

Select scopes:

• bot
• applications.commands — optional; only needed if slash commands are required later

Select bot permissions.

For read-only testing:

• View Channels
• Read Message History

For send testing, also add:

• Send Messages

For full QUI Discord MCP tool coverage, add:

• View Channels
• Send Messages
• Read Message History
• Embed Links
• Attach Files
• Add Reactions
• Manage Channels — for discord_create_channel and discord_delete_channel
• Manage Roles — for discord_create_role and discord_assign_role
• Create Instant Invite — for discord_create_invite
• Kick Members — optional

For a throwaway test server only, you may use:

Administrator

Do not use Administrator permissions in production unless absolutely necessary.

Copy the generated invite URL at the bottom of the page.

5.6 Invite the Bot to the Server

1. Paste the generated invite URL into a browser.
2. Choose the target server.
3. Click Continue.
4. Click Authorize.
5. Complete the captcha if prompted.

The bot may appear offline. This can be normal because the QUI MCP uses the REST API directly rather than maintaining a live gateway connection.

5.7 Get Discord IDs for Testing

1. In Discord, go to:User Settings → Advanced
2. Right-click and copy IDs as needed:
   • Server name → Copy Server ID
   • Channel → Copy Channel ID
   • User → Copy User ID

Turn on:

Developer Mode

These values are used for parameters such as:

guild_id
channel_id
user_id

5.8 Wire Discord into the MCP Gateway

Edit:

Qui_Core_Services/MCP_Gateway/.env

Add:

DISCORD_BOT_TOKEN=your-bot-token-here

Then rebuild the MCP Gateway container according to 111.md.

5.9 Configure the Discord MCP Node

To use the Discord MCP node with your own server, set:

default_guild_id=<your Discord server ID>
default_channel_id=<your Discord channel ID>

For the current bot, a confirmed working test target is:

default_guild_id=1391721136647307335

default_channel_id=1391721137129525332

Known server:

Qui Academy

5.10 Test Discord

First call:

discord_list_guilds

Expected result:

• The test server should appear.

Then test sending a message:

discord_send_message

using the copied channel ID.

Expected result:

• A message should appear in the Discord channel.

5.11 Discord Common Gotchas

6. Google Calendar MCP Connector Setup

Use a Google Cloud service account for the Google Calendar MCP connector.

6.1 Create or Select a Google Cloud Project

1. Create a new project or select an existing one.

Go to:

https://console.cloud.google.com

6.2 Enable the Google Calendar API

1. Go to:APIs & Services → Library
2. Click Enable.

Search for:

Google Calendar API

6.3 Create a Service Account

1. Go to:APIs & Services → Credentials
2. Click:Create Credentials → Service Account
3. Finish the service account creation.

Give it a name, for example:

mcp-calendar-bot

Example service account email:

mcp-calendar-bot@noted-span-417913.iam.gserviceaccount.com

6.4 Generate the Service Account JSON Key

1. Make sure the correct project is selected in the top bar.
2. In the left sidebar, click:IAM & Admin → Service Accounts
3. Click the email/name of the service account you created.
4. Click:Add Key → Create new key
5. Click Create.

Select:

JSON

Open the Keys tab.The service account page should show tabs similar to:

Details | Permissions | Keys | Metrics

Go to:

https://console.cloud.google.com

The JSON file will automatically download to your computer.

Example filename:

my-project-123456-abcdef.json

This JSON file is what the mcp_calendar connector needs.

6.5 If Create New Key Is Missing

Possible causes:

• You are not inside the service account detail page.
• You are still on the general credentials page.
• Your Google account does not have sufficient permission.
• You need Owner or Editor role.
• The organization policy blocks service account key creation.

6.6 Share the Calendar with the Service Account

1. Open Google Calendar.
2. Find the calendar you want the MCP connector to access.
3. Open:Settings & sharing

Give the service account the required permission, for example:

Make changes to events

Add the service account email, for example:

mcp-calendar-bot@your-project.iam.gserviceaccount.com

7. Brave Search MCP Connector Setup

The mcp_brave connector requires a Brave Search API key.

If the connector shows:

no API key present

then the key has not been configured.

7.1 Create a Brave Search API Key

1. Click Get Started or Sign Up.
2. Create an account using email/password or GitHub login.
3. Once logged in, open the dashboard.
4. Click Create API Key.
5. Copy the generated key.

Look for:

API Keys

or:

Subscription

Go to:

https://api.search.brave.com/

It should look similar to:

BSAxxxxxxxxxxxxxxxxxxxxxxxx

7.2 Configure the Brave API Key

Option A: environment variable

BRAVE_API_KEY=your_api_key_here

Option B: MCP config file

{
  "mcp_brave": {
    "api_key": "your_api_key_here"
  }
}

7.3 Restart and Test Brave Search

Restart the MCP process, server, or CLI after setting the key.

Expected result:

• mcp_brave returns search results.
• The no API key present error disappears.

7.4 Brave Common Issues

8. WhatsApp / GreenAPI Node Setup

The WhatsApp node's Default Chat ID should come from GreenAPI.

8.1 Supported Chat ID Formats

Individual contact:

PHONE_NUMBER@c.us

Example:

447700900123@c.us

Group chat:

GROUP_ID@g.us

Example:

1203630xxxxxxxx@g.us

8.2 How to Find the GreenAPI Chat ID

1. Open the GreenAPI dashboard.
2. Select the WhatsApp instance.
3. Use one of the receiving-message tools, such as:
   • Receiving messages
   • Get chat history
   • Last incoming messages
4. Send a test WhatsApp message to the connected number.
5. Look for chatId in the returned message payload.
6. Copy the exact chatId value.

Paste it into the WhatsApp node's:

Default Chat ID

Connect an Anima to Telegram

This guide is for someone who wants an Anima to send and receive Telegram messages through the existing QUI comms bridge.

What You Need

• A Telegram account.
• Access to the Anima or ThinkThing workspace where the Telegram node is configured.
• The Anima you want Telegram to speak through.
• A bot token from Telegram's official @BotFather.

Keep the bot token private. Anyone with the token can control that Telegram bot.

Quick Setup

1. Create the Telegram bot

1. Open Telegram.
2. Search for @BotFather.
3. Send /newbot.
4. Choose a display name, for example Erik Anima.
5. Choose a username that ends in bot, for example ErikAnimaBot.
6. Copy the bot token BotFather gives you.

Telegram usernames are used in t.me links, so keep the bot username readable and specific.

2. Add Telegram to the Anima flow

1. Open the builder or workspace that contains your Anima.
2. Add or open a Telegram comms node.
3. Connect the Anima to the Telegram node.
4. Fill the Telegram fields:
   • Bot Username: the username from BotFather, without or with @.
   • Bot Token: the token from BotFather.
   • Default Chat ID: leave blank until the chat is discovered.
   • Allowed Chat IDs: leave blank until the chat is discovered, or fill only the chat IDs you want this Anima to use.

The current Telegram node can generate a one-click start link from the bot username.

3. Start the bot from Telegram

1. Open that link in Telegram.
2. Press Start, or send /start.
3. Send one normal test message, for example hello.

In the Telegram node, copy the generated start link. It looks like:

https://t.me/<bot_username>?start=qui_thinkthing
https://t.me/<ErikQuiBot>?start=qui_thinkthing

The test message gives the system a recent Telegram update it can discover.

4. Fetch and select the chat

1. Return to the Telegram node.
2. Click Fetch Chats.
3. Select the discovered chat from Known Chats.
4. Confirm that the node filled:
   • Default Chat ID
   • Allowed Chat IDs
5. Save the graph or Anima flow.

If no chat appears, send /start and one ordinary message to the bot, then fetch again.

5. Send a test message

Use a small test first:

Send "Telegram is connected" to the Telegram chat.

After the outbound message works, reply to the bot in Telegram and confirm the reply appears in the relevant String or flow.

Groups and Channels

For a private one-to-one chat, the user only needs to open the bot and send /start.

For a group:

1. Add the bot to the group.
2. Send a message that the bot can see.
3. Fetch chats again in the Telegram node.
4. Select the group chat ID.

Telegram bots run in group privacy mode by default. In that mode, a bot sees commands, replies to the bot, and a limited set of relevant messages. If the Anima must read every group message, change this in BotFather with /setprivacy, then remove and re-add the bot to the group. Only disable privacy mode when the group expects the bot to read general chat traffic.

For a channel, add the bot to the channel with the permissions it needs. Telegram channel posts use the channel chat ID as the target.

How Receiving Works

QUI currently supports Telegram inbound messages through Thalamus. The user-facing setup path is:

1. The Telegram node stores the bot token and selected chat ID.
2. ThinkThing syncs the resolved Telegram runtime config to Thalamus.
3. Thalamus polls Telegram with getUpdates.
4. Incoming Telegram updates are normalized as channel messages.
5. Messages are stored in Memory and broadcast to Strings.
6. Explicit downstream consumers, such as a ThinkThing comms flow or an Anima channel trigger, decide whether to answer.

Thalamus does not auto-reply on its own. An Anima replies only when the flow or trigger tells it to.

Optional Webhook Deployment

Most local or builder-driven setups should use the normal polling path above. Use webhooks only when you have a public HTTPS endpoint for Thalamus.

For webhook mode:

Register the webhook with Telegram:

curl "https://api.telegram.org/bot<bot_token>/setWebhook?url=https://<your-domain>/api/v1/channel/telegram&secret_token=<random-secret>"

Expose this Thalamus route over HTTPS:

POST /api/v1/channel/telegram

Set a server-side secret in the Thalamus environment:

THALAMUS_TELEGRAM_WEBHOOK_SECRET=<random-secret>

Telegram will send the secret back in the X-Telegram-Bot-Api-Secret-Token header. Thalamus rejects Telegram webhook requests if the secret is missing or wrong.

Do not use getUpdates polling and webhooks at the same time. Telegram only allows one active receive mode for a bot.

Troubleshooting

BotFather token rejected

Copy the token again from BotFather. It should look like a numeric bot ID, a colon, and a long secret string. Do not include extra spaces.

Fetch Chats shows no chats

Open the generated t.me link, press Start, and send a normal message. Then click Fetch Chats again. If webhook mode was previously configured, remove the webhook or switch the runtime back to polling.

The Anima can send but does not receive replies

Check that the Telegram node has a Default Chat ID, that the chat ID is included in Allowed Chat IDs, and that the graph or channel trigger is active. Thalamus stores inbound messages but does not decide to answer by itself.

Group messages are missing

This is usually Telegram privacy mode. In privacy mode, the bot sees commands, replies, service messages, private chats, and channel messages, but not every ordinary group message. Use /setprivacy in BotFather only if the group wants broad bot visibility.

Webhook setup works but polling does not

Delete the Telegram webhook before using polling:

curl "https://api.telegram.org/bot<bot_token>/deleteWebhook"

Webhook receives nothing

Telegram webhooks require a valid HTTPS endpoint. Telegram's public Bot API webhook ports are 443, 80, 88, and 8443. Check getWebhookInfo for the last delivery error.

curl "https://api.telegram.org/bot<bot_token>/getWebhookInfo"

Environment Variable Summary

Use this as a quick checklist when wiring integrations into the MCP Gateway.

# Slack
SLACK_TOKEN=xoxb-...
SLACK_APP_TOKEN=xapp-... # optional; only required for Socket Mode

# Notion
NOTION_API_KEY=ntn_xxx...

# Discord
DISCORD_BOT_TOKEN=your-bot-token-here

# Brave Search
BRAVE_API_KEY=your_api_key_here

Google Calendar uses a downloaded service account JSON file rather than a simple API key. Store that JSON securely and configure the calendar connector according to the MCP runtime's expected path or secret-loading mechanism.

Final Verification Checklist

Before marking an integration as complete, verify the following:

Google OAuth

• OAuth client exists in Google Cloud.
• Redirect URI matches production routing.
• OAuth consent screen is configured.
• googleOAuthEnabled is enabled in Mothership admin.
• /api/v1/auth/google/login returns a 302 redirect.
• Browser login flow completes successfully.

GitHub

• Classic PAT exists.
• Required scopes are selected.
• Expiration is set appropriately.
• Token is stored securely.

Slack

• App is installed to the test workspace.
• Required bot scopes are configured.
• App has been reinstalled after any scope changes.
• SLACK_TOKEN is configured.
• Bot has been invited to test channels.
• slack_list_channels and/or slack_post_message works.

Notion

• Internal integration exists.
• Required capabilities are enabled.
• NOTION_API_KEY is configured.
• Pages/databases are explicitly shared with the integration.
• notion_search returns accessible pages/databases.

Discord

• Bot exists.
• Required intents are enabled.
• Bot is invited to the server.
• Required permissions are granted.
• DISCORD_BOT_TOKEN is configured.
• discord_list_guilds works.
• discord_send_message works for the test channel.

Google Calendar

• Google Calendar API is enabled.
• Service account exists.
• JSON key has been downloaded and stored securely.
• Calendar has been shared with the service account.
• Required calendar permissions are granted.

Brave Search

• Brave Search API key exists.
• BRAVE_API_KEY is configured.
• MCP process has been restarted.
• Brave search returns results.

WhatsApp / GreenAPI

• GreenAPI instance is connected.
• Test message has been sent.
• chatId has been copied from the GreenAPI payload.
• WhatsApp node Default Chat ID is set correctly.

Check Telegram / BotFather

• Telegram bot has been created with @BotFather.
• Bot token has been copied from BotFather.
• Bot username is set in the Telegram node.
• User has opened the bot link or searched the bot in Telegram.
• User has sent /start to the bot.
• A test message has been sent to the bot.
• Fetch Chats has been clicked in the Telegram node.
• Telegram chat_id has been selected or copied from the fetched chat.
• Telegram node Default Chat ID is set correctly.
• Telegram node Allowed Chat IDs includes that chat ID, if the allowlist is
  being used.
